2015 Complete 10 Brl Brewery

This complete brewery is available for immediate sale, with very little use since installation in 2015.

The brewing plant comprises the following items :-

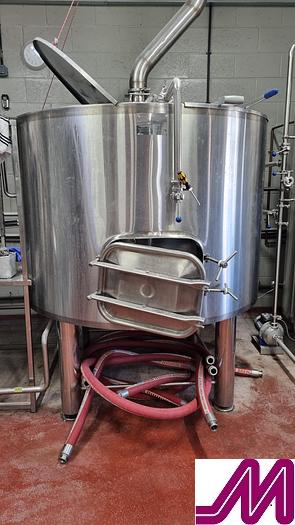

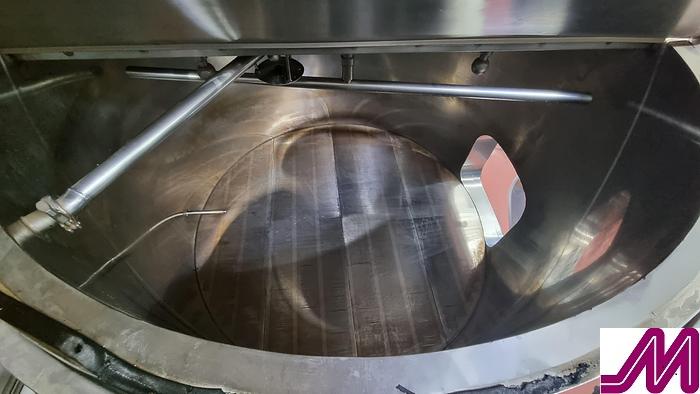

1 off 10 BBL Mash Tun

• With side man way door for grain removal

• Two piece removable lid

• Grain hydrator

• Mash and sparge liquor temperature gauge

• Wort recirculation

• Cut false bottom in four parts

• Sparge arm

• Temperature probe

• CIP spray balls

• Insulated on bottom and side wall

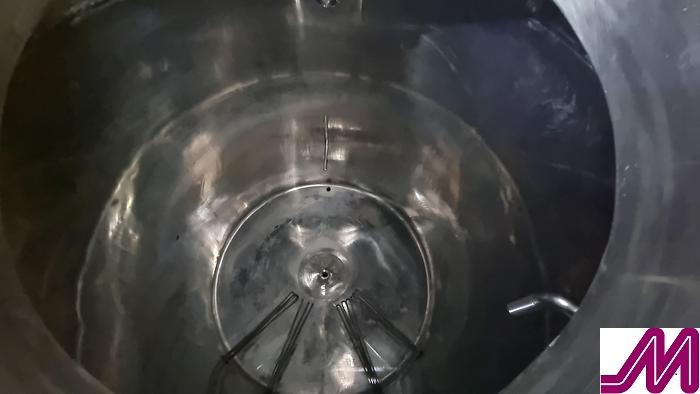

1 off 10 BBL Kettle

• Top and side man way for hop addition and removal

• Hop filter

• Heating electrical elements

• Light point

• Temperature probe

• CIP spray ball

• Sample point

• Level gauge

• Insulated on bottom and side wall

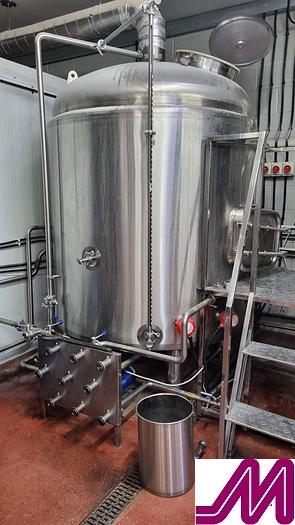

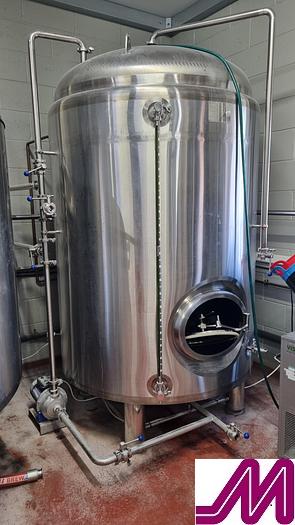

1 off Hot Liquor Tank (double sized 20 barrel)

• Top or side man way door

• Heating electrical elements

• Temperature probe

• CIP spray ball

• Sample point

• Level gauge

• Insulated on bottom and side wall

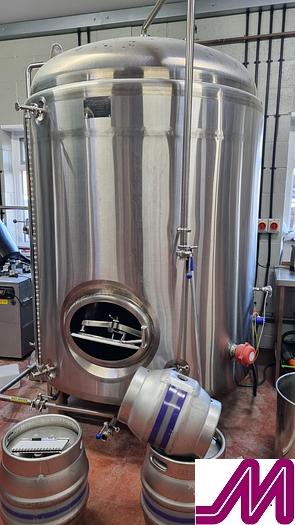

1 off Cold Liquor Tank (15 barrel capacity)

• Top or side man way door

• Two cooling jackets one side one bottom

• Temperature probe

• CIP spray ball

• Sample point

• Level gauge

• Insulated on bottom and side wall

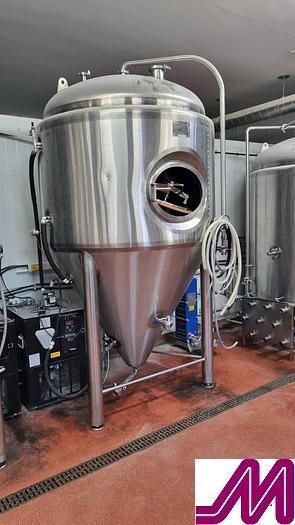

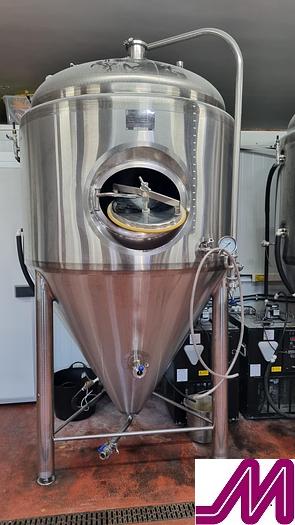

2 off Fermenters (1700 litre net and 2000 litre gross)

• Conical fermenter with 60 degree cone

• Spray ball

• Pressure relief valve

• Pressure gauge

• Sample point

• Temperature probe

• Side man way door

• Hop additions port on top

• 0.5 bar working pressure

• Two cooling jackets one side and one cone

• Two outlets one bottom of cone one on the side

• Insulated and clad in stainless steel with welded joints

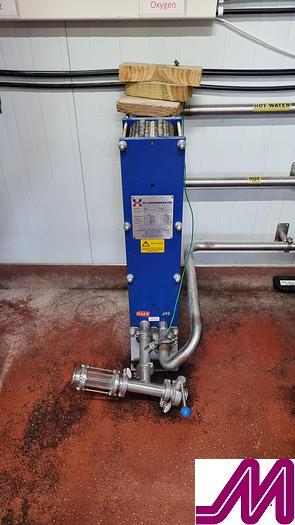

1 off Single stage heat exchanger

Hot liquor, cold liquor and wort pump

Mobile pump on trolley with inverter control

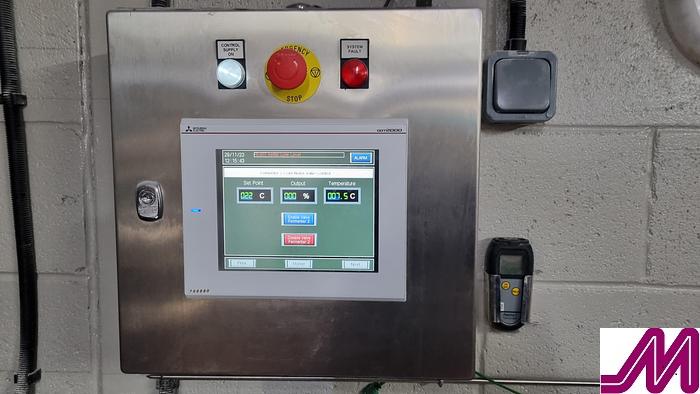

Control panel for - brewery pump speed control, temperature indication and control on CLT, HLT, kettle and mash vessel. The control panel for the kettle and HLT heating can be combined with the brewery control panel. Control panel for fermentation control with two solenoids and two temperature probes the

panel would have four temperature controllers but with only two operational ready for extra vessels.

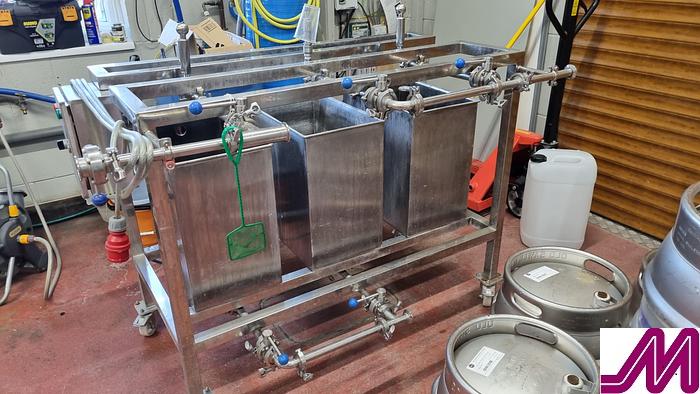

1 off Cask washer

1 off Hop cannon with 100 litre internal volume
